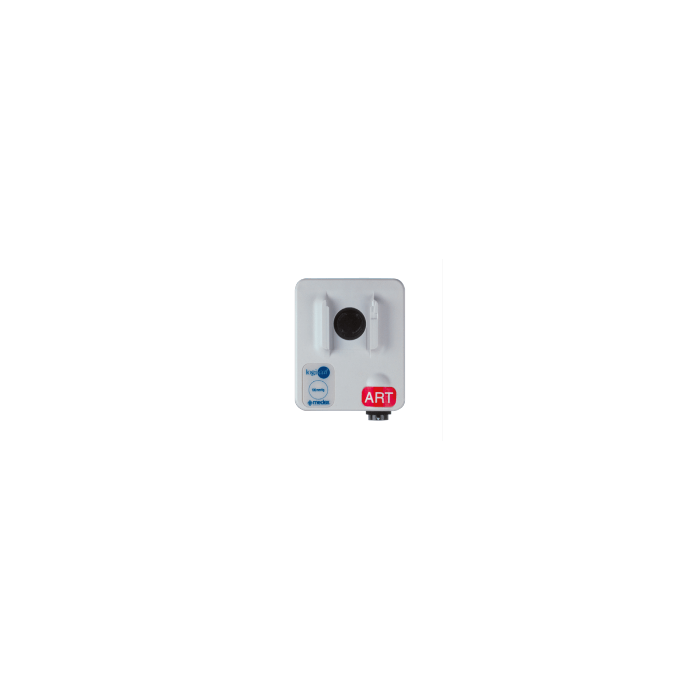

Pressure Transducer Reusable Logical [Pack of 1]

Ensure accurate and reliable pressure monitoring with the ICU Medical LogiCal Reusable Pressure Transducer, designed to simplify clinical workflows while maintaining precise readings. This advanced transducer integrates cutting-edge microchip technology, ensuring consistent performance and patient safety across various critical care settings, including operating theatres, transportation, and intensive care units (ICUs).

Key Features & Benefits:

✅ Advanced Microchip Technology: Optimized microchip technology provides stable electronic parameters, compensating for temperature fluctuations to ensure accurate measurements.

✅ Built-In Sure-Cal™ System: Easily verify system integrity with the Sure-Cal™ facility. A quick press of the Sure-Cal button delivers a 100 mmHg reading, confirming the system's proper function before patient arrival.

✅ Seamless Patient Transfers: The pressure transducer remains stationary, while the pressure monitoring set travels with the patient. Easily disconnect and reconnect the cartridges for smooth transitions between care areas.

✅ Superior Fluid Protection: The specialized connector design prevents fluid ingress into the electronic system, safeguarding the device from damage and ensuring continued accuracy.

✅ Reusable and Cost-Effective: The LogiCal transducer is reusable between patients, helping reduce medical waste. Simply clean according to the manufacturer’s guidelines to maintain sterility and performance.

Technical Specifications:

• Pressure Measurement Range: –30 to +300 mmHg
• Sensitivity: 5 μV/V/mmHg (nominal)
• Signal Impedance: 300 Ohm ± 10%
• Excitation Impedance: 630 Ohm (nominal)
• Balance: 0 ± 50 mmHg
• Temperature Sensitivity Coefficient: 0 ± 0.1%/°C
• Calibration Value Temperature Coefficient: 0 ± 0.3 mmHg/°C
• Excitation Voltage: 4–8 V DC (up to 5 kHz)
• Risk Current: <5 μA at 115 V AC, 60 Hz
• Overpressure Withstand: –400 to +4000 mmHg
• Defibrillation Capacity: Withstands 5 discharges in 5 minutes at 360 joules
• Transducer Bandwidth (15%): >200 Hz
